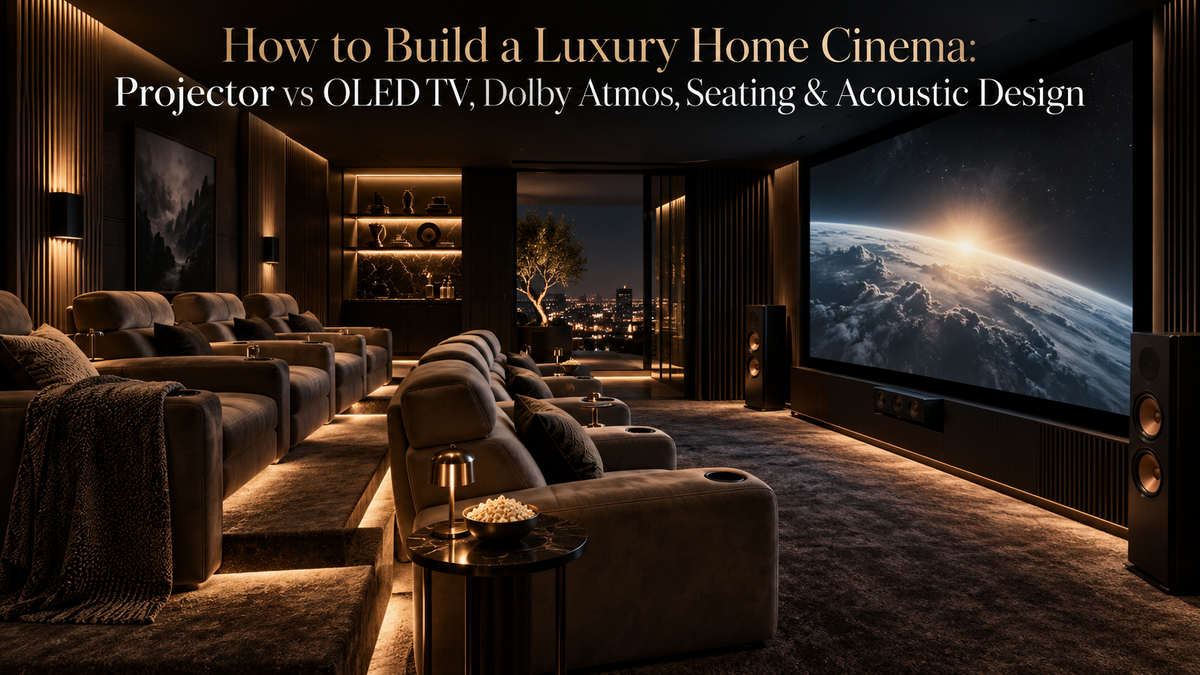

How to Build a Luxury Home Cinema: Projector vs OLED TV, Dolby Atmos, Seating & Acoustic Design
A premium cinema is not a large television plus expensive speakers. It is a room in which image, sound, sightlines, acoustics, lighting and architecture have been designed as one system.
Home Cinema & Audio Design Editor
The biggest mistake in home cinema is beginning with a shopping list. A better cinema begins with the room: viewing distance, ceiling height, ambient light, seating count, acoustic behaviour and how the system should disappear into the architecture. Once those decisions are clear, the choice between projector and television, the number of speakers, the subwoofer strategy and the seating layout become far easier.
The best home cinema does not feel like a room full of equipment. It feels like the architecture itself has learned how to play a film.
01
Start With the Room, Not the Screen
Measure the usable width, depth and ceiling height before choosing any display. Decide how many people genuinely need a prime seat and where the main listening position will sit. A two-row theater needs different sightlines and riser heights from a media room built around one large sofa.
Also note windows, doors, HVAC vents and reflective surfaces. These details affect projection, speaker placement and acoustics more than many buyers expect.
02
Projector or OLED TV?
A projector is the natural choice when cinematic scale is the priority. Once image sizes move far beyond conventional televisions, projection can create the sense of visual immersion associated with a commercial theater. It does, however, reward strong light control and careful screen selection.
OLED is ideal when absolute black level, HDR impact, everyday usability and mixed daytime viewing matter more than extreme screen size. In a premium media room rather than a dedicated blacked-out theater, a large OLED can be the more elegant solution.
03
Dolby Atmos: Think in Layers
Dolby Atmos adds a height layer to conventional surround sound. A layout such as 5.1.2 uses five ear-level speakers, one low-frequency channel and two height speakers; 7.1.4 expands the surround field and uses four height channels. Larger rooms can support additional wides, rears and overhead speakers.
More channels only help when placement is correct. A well-designed 7.1.4 room will usually outperform a badly placed system with more speakers.
04
The Center Speaker Is the Anchor
Dialogue carries an enormous amount of narrative information, so the center channel deserves the same level of attention as the front left and right speakers. In a projection room, an acoustically transparent screen can allow the front speakers to sit at the correct visual height behind the image, creating a stronger connection between voices and the picture.
05
Subwoofers: Smooth Bass Before Bigger Bass
One powerful subwoofer can create spectacular impact, but multiple subwoofers can make bass more consistent across several seats when they are properly positioned and calibrated. The objective is not simply more output; it is fewer severe peaks and nulls across the listening area.
06
Acoustic Treatment Is Interior Design
Absorption controls reflections and dialogue smear. Diffusion can help preserve a sense of energy and spaciousness. Bass treatment manages low-frequency buildup. In a luxury room, these elements can be hidden behind fabric walls, timber slats, decorative panels or architectural detailing rather than appearing as studio foam.
07
Seating, Sightlines and Comfort
Choose the screen size only after deciding the seating distance. In multi-row cinemas, the rear platform must allow viewers to see over the row in front without forcing the screen too high. Recliners should also leave enough space for surround speakers and circulation.
08
Lighting Should Be Layered and Scene-Based
Use dimmable perimeter lighting, step lights, wall washers and low-level task lighting rather than one bright ceiling circuit. A good control system can create scenes for arrival, trailers, feature presentation, intermission and cleaning.
09
Hide the Technology That Does Not Need to Be Seen
AV receivers, processors, amplifiers, network hardware and power conditioning belong in a ventilated rack whenever possible. Keep fans, projectors and mechanical systems acoustically isolated from the seating zone. Luxury comes partly from what the viewer does not notice.
10
FAQ
Is a projector always better for movies? No. Projectors win on scale; large OLED and premium direct-view displays can win on black level, HDR punch and simplicity.
Is 7.1.4 enough for a luxury cinema? For many dedicated rooms, yes. Layout quality and calibration matter more than chasing channel count.
Do acoustic panels make a room look like a studio? They do not have to. Panels can be integrated behind fabric, wood slats or custom millwork.
Should I use two subwoofers? Multiple subwoofers can improve seat-to-seat bass consistency when correctly designed and calibrated.
