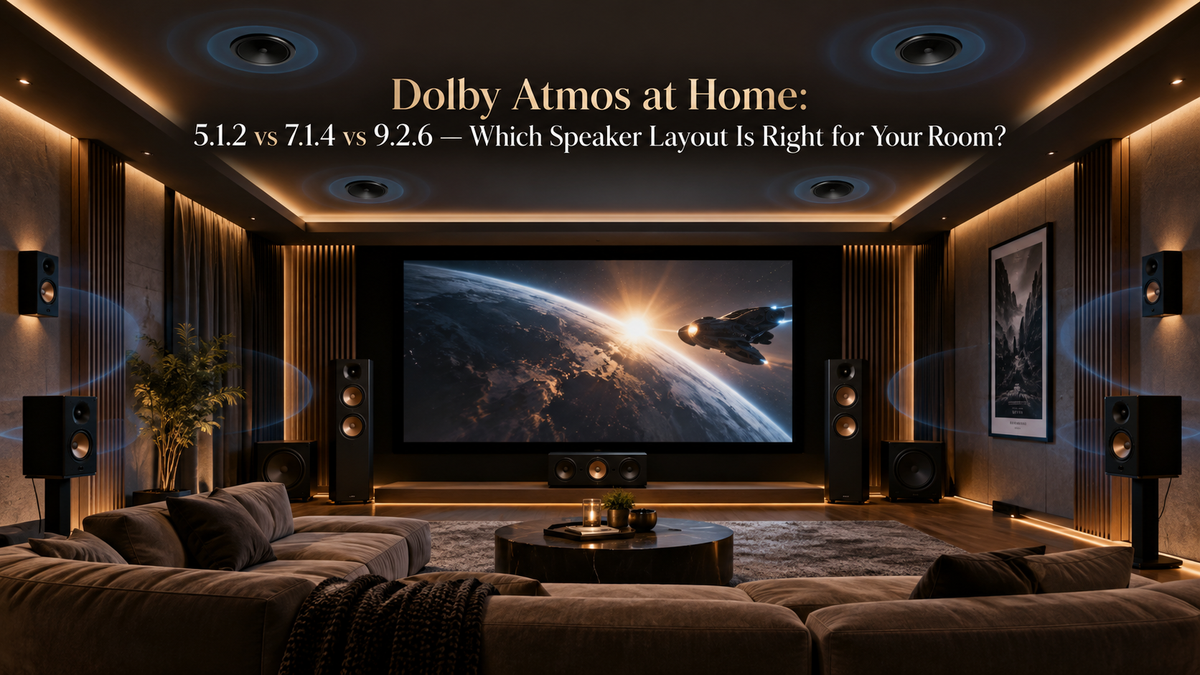

Dolby Atmos at Home: 5.1.2 vs 7.1.4 vs 9.2.6 — Which Speaker Layout Is Right for Your Room?
Atmos works by building a three-dimensional field around the listener. The challenge is deciding how much system your room can actually use.
Immersive Audio & Acoustics Editor
The numbers in an Atmos layout can look intimidating, but the logic is simple: the first number describes the ear-level speaker layer, the second refers to low-frequency effects, and the final number describes height channels. What matters is not reaching the largest number possible; it is creating a coherent sound field around the seats you actually use.
Atmos becomes convincing when sounds move smoothly through space—not when the ceiling simply contains more speakers.
01
What 5.1.2 Actually Means
A 5.1.2 system uses the classic left, center, right and two surround speakers, plus bass reproduction and two height channels. It is an efficient way to add overhead information to a compact room or multipurpose living space.
The limitation is that two height channels create less front-to-back movement overhead than four or six height speakers can provide.
02
Why 7.1.4 Is Such a Strong Dedicated-Cinema Layout
A 7.1.4 system adds rear surrounds and four height channels. That produces better separation behind the listener and more convincing movement across the ceiling. For many purpose-built home theaters, this is a highly capable balance between complexity, cost and immersion.
03
When a 9-Channel Ear-Level Layout Makes Sense
Large rooms can benefit from adding front-wide speakers between the main left/right speakers and the side surrounds. This helps bridge a physical gap that can become obvious when seats are far from the screen and the room is wide.
Six height channels can add another layer of continuity overhead in larger theaters, but only when the ceiling and seating geometry allow correct placement.
04
About the ‘.2’ in 9.2.6
Home-cinema owners often use 9.2.6 to describe a system with nine ear-level speakers, two physical subwoofers and six height speakers. In practice, subwoofers are frequently managed and calibrated together through bass-management systems, so the number of physical subs and the formal LFE-channel notation are not always the same thing.
05
Overhead Speakers vs Up-Firing Modules
In-ceiling or on-ceiling speakers give the designer direct control over height placement. Up-firing Atmos-enabled modules use ceiling reflection and can be valuable where cutting the ceiling is impossible. Their success depends more strongly on ceiling height, shape and reflectivity.
06
The Main Listening Position Comes First
Atmos layouts are designed around a central listening reference. Place the main seat first, then position the speaker geometry around it. In a multi-row theater, compromise should be distributed carefully so one perfect chair does not produce poor coverage everywhere else.
07
Do Not Ignore the Bed Layer
Height channels cannot repair weak front speakers, poor surround placement or an undersized center channel. The ear-level layer should already create a seamless 360-degree field before height speakers are added.
08
Room Size Guide
5.1.2 or 5.1.4
7.1.4
7.1.6 or 9.1.4
9-channel bed layer with 4–6 heights and engineered bass
09
FAQ
Is 5.1.2 real Dolby Atmos? Yes. It is a valid Atmos configuration with two height channels.
Is 7.1.4 better than 5.1.4? In a room that benefits from rear surrounds, it can provide stronger rear separation.
Do I need six ceiling speakers? No. Four height channels are already highly effective in many dedicated theaters.
Can a soundbar replace a full Atmos system? It can provide an immersive experience, but a properly installed discrete speaker system gives the designer more control over physical sound placement.
